Intro

This post is about how to linear interpolate points from a trip

Data

Download my package sula to have access to test data and the function interpolate_trips.

#devtools::install_github("MiriamLL/sula")
library(sula)

Inside the package, there is data from a tracked individual from Rapa Nui, Chile

ID01_track<-sula::GPS01_trips

The data contains Latitude, Longitude, Date, Time, ID and trip_number

head(ID01_track)

   Latitude Longitude    DateGMT  TimeGMT   IDs trip trip_number
1 -27.23235 -109.4596 02/11/2017 19:34:31 GPS01    Y      trip_1
2 -27.23661 -109.4547 02/11/2017 19:38:43 GPS01    Y      trip_1
3 -27.24289 -109.4605 02/11/2017 19:42:55 GPS01    Y      trip_1
4 -27.24006 -109.4630 02/11/2017 19:47:25 GPS01    Y      trip_1
5 -27.24054 -109.4760 02/11/2017 19:51:43 GPS01    Y      trip_1
6 -27.25226 -109.4551 02/11/2017 19:56:06 GPS01    Y      trip_1

Plot the data using ggplot to see whats inside.

library(ggplot2)

Add the central location for reference.

ID01_nest<-data.frame(Longitude=-109.4531,Latitude=-27.20097)

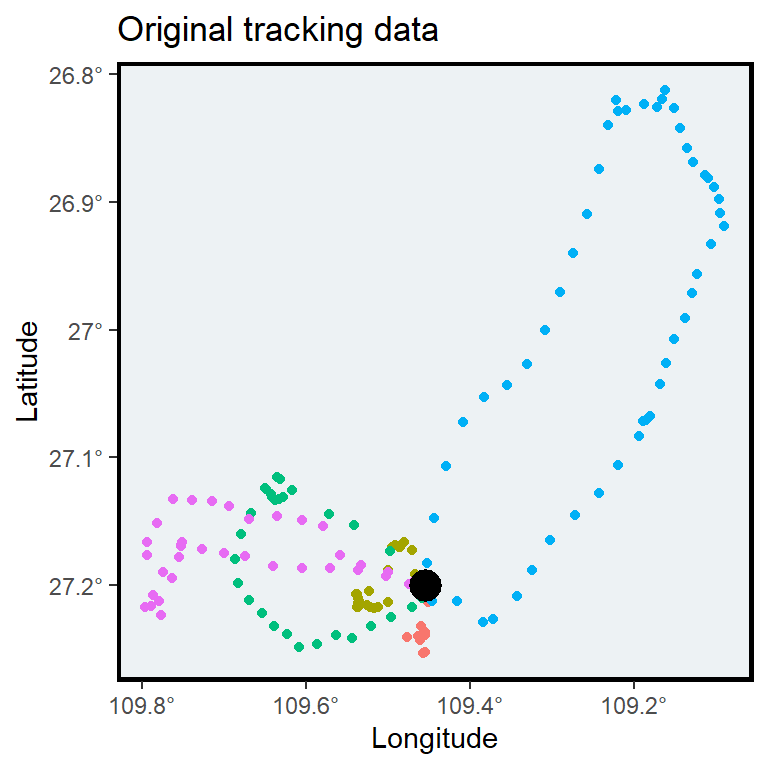

In the figure, the original points recorded are presented. Each color represents a different individual, the black dot is the colony.

Original_track<-ggplot(ID01_track, aes(x=Longitude, y=Latitude, color=trip_number)) +
  geom_point()+
  theme_bw()+
  ggtitle('Original tracking data')+
  theme_bw()+
  theme(legend.position='none')+
  scale_x_continuous(labels = function(x) paste0(-x, '\u00B0')) +
  scale_y_continuous(labels = function(x) paste0(-x, '\u00B0'))  +
  xlab('Longitude')+ylab('Latitude')+
  theme(
    panel.background = element_rect(fill = '#edf2f4'),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),legend.position='none',
    panel.border = element_rect(colour = "black", fill=NA, size=1.5)
  )+
  geom_point(data=ID01_nest,aes(x = Longitude,y= Latitude),
             color="black", fill="black",shape=16,size=5,stroke=1.5)
Original_track

Interpolations

For the function, provide the following information:
1. trip_number, this would separate the trips and interpolate them using a loop. This is important to prevent that locations inside the nest are interpolated.
2. column_lat, and column_lon, need to be provided with the name of your columns. Here, Latitude and Longitude were the names of my columns. I am providing the Latitude and Longitude in degrees.
3. column_date, column_time and datetime_format should also be fitting your provided data.
4. interval, please give the interval in seconds. This interval would depend on the type of data you are providing. Because this is a linear interpolation, be careful to not have large gaps. If you do, I would suggest to remove trips with large gaps before doing the interpolation.

Interpolate to 1 minute

ID01_interpolated1m<-interpolate_trips(GPS_data=ID01_track,
                                     interval='60 sec',
                                     column_date='DateGMT',
                                     column_time='TimeGMT',
                                     column_trip='trip_number',
                                     column_lat='Latitude',
                                     column_lon='Longitude',
                                     datetime_format<-"%d/%m/%Y %H:%M:%S")

You can see that after the function you have more data points.
This is because the original data was collected every 5 minutes, and the interpolation added locations every one minute.

nrow(ID01_track)

[1] 152

nrow(ID01_interpolated1m)

[1] 615

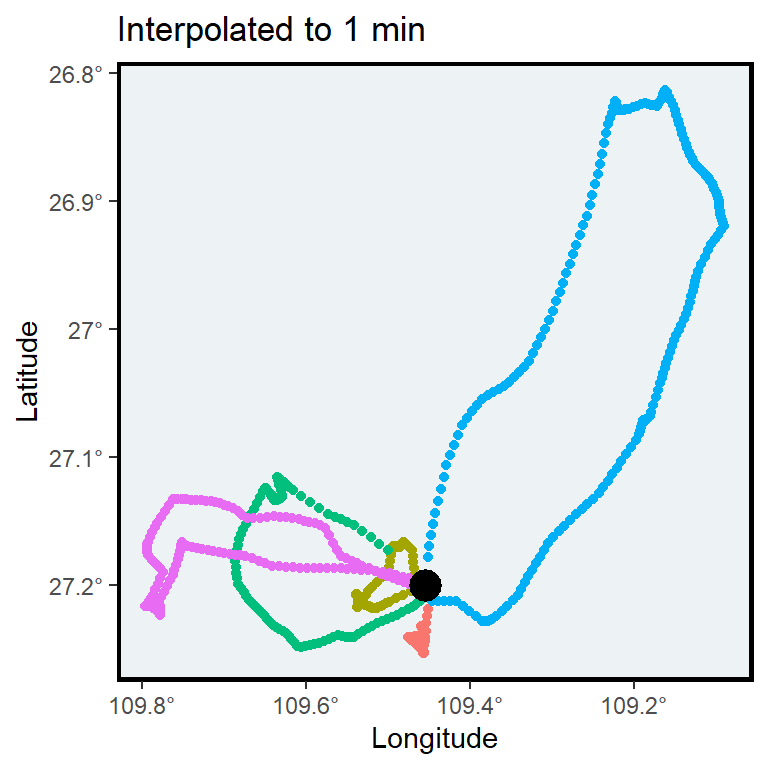

Plot the interpolated data set to see the difference.

Interpolated_1m<-ggplot(ID01_interpolated1m, aes(x=Longitude, y=Latitude, color=trip_number)) +
  geom_point()+
  ggtitle('Interpolated to 1 min')+
  theme_bw()+
  theme(legend.position='none')+
  scale_x_continuous(labels = function(x) paste0(-x, '\u00B0')) +
  scale_y_continuous(labels = function(x) paste0(-x, '\u00B0'))  +
  xlab('Longitude')+ylab('Latitude')+
  theme(
    panel.background = element_rect(fill = '#edf2f4'),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),legend.position='none',
    panel.border = element_rect(colour = "black", fill=NA, size=1.5)
  )+
  geom_point(data=ID01_nest,aes(x = Longitude,y= Latitude),
             color="black", fill="black",shape=16,size=5,stroke=1.5)
Interpolated_1m

Interpolate to 15 minutes

To interpolate to 15 minutes, change the interval to 900 sec.

ID01_interpolated15m<-interpolate_trips(GPS_data=ID01_track,
                                     column_trip='trip_number',
                                     column_lat='Latitude',
                                     column_lon='Longitude',
                                     column_date='DateGMT',
                                     column_time='TimeGMT',
                                     datetime_format<-"%d/%m/%Y %H:%M:%S",
                                     interval='900 sec')

You can see that after the function you have less data points.
This is because the original data was collected every 5 minutes, and the interpolation added locations every 15 minutes.

nrow(ID01_track)

[1] 152

nrow(ID01_interpolated15m)

[1] 44

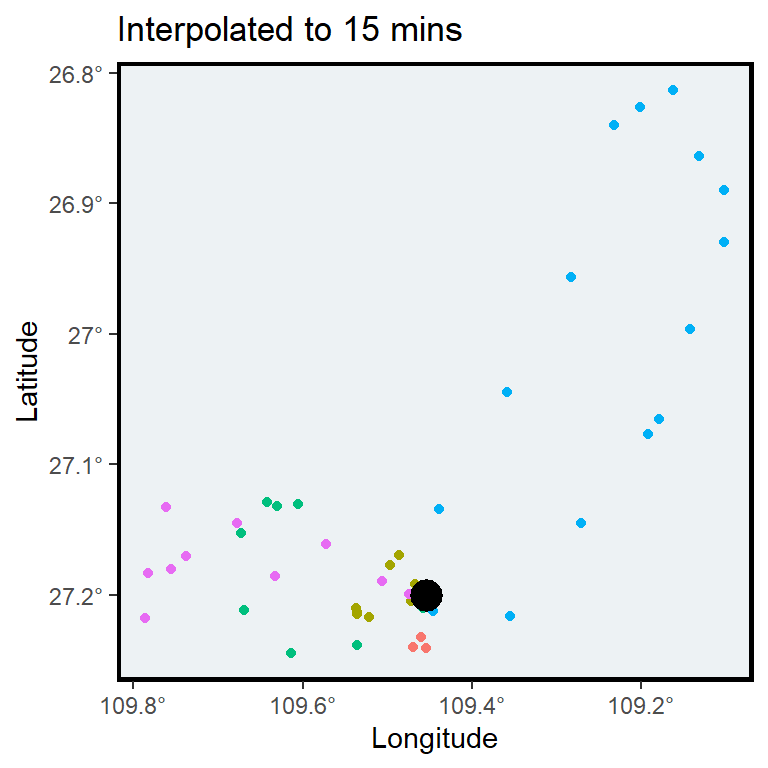

Plot to see the difference.

Interpolated_15m<-ggplot(ID01_interpolated15m, aes(x=Longitude, y=Latitude, color=trip_number)) +
  geom_point()+
  theme_bw()+
  ggtitle('Interpolated to 15 mins')+
  theme_bw()+
  theme(legend.position='none')+
  scale_x_continuous(labels = function(x) paste0(-x, '\u00B0')) +
  scale_y_continuous(labels = function(x) paste0(-x, '\u00B0'))  +
  xlab('Longitude')+ylab('Latitude')+
  theme(
    panel.background = element_rect(fill = '#edf2f4'),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),legend.position='none',
    panel.border = element_rect(colour = "black", fill=NA, size=1.5)
  )+
  geom_point(data=ID01_nest,aes(x = Longitude,y= Latitude),
             color="black", fill="black",shape=16,size=5,stroke=1.5)
Interpolated_15m

Compare

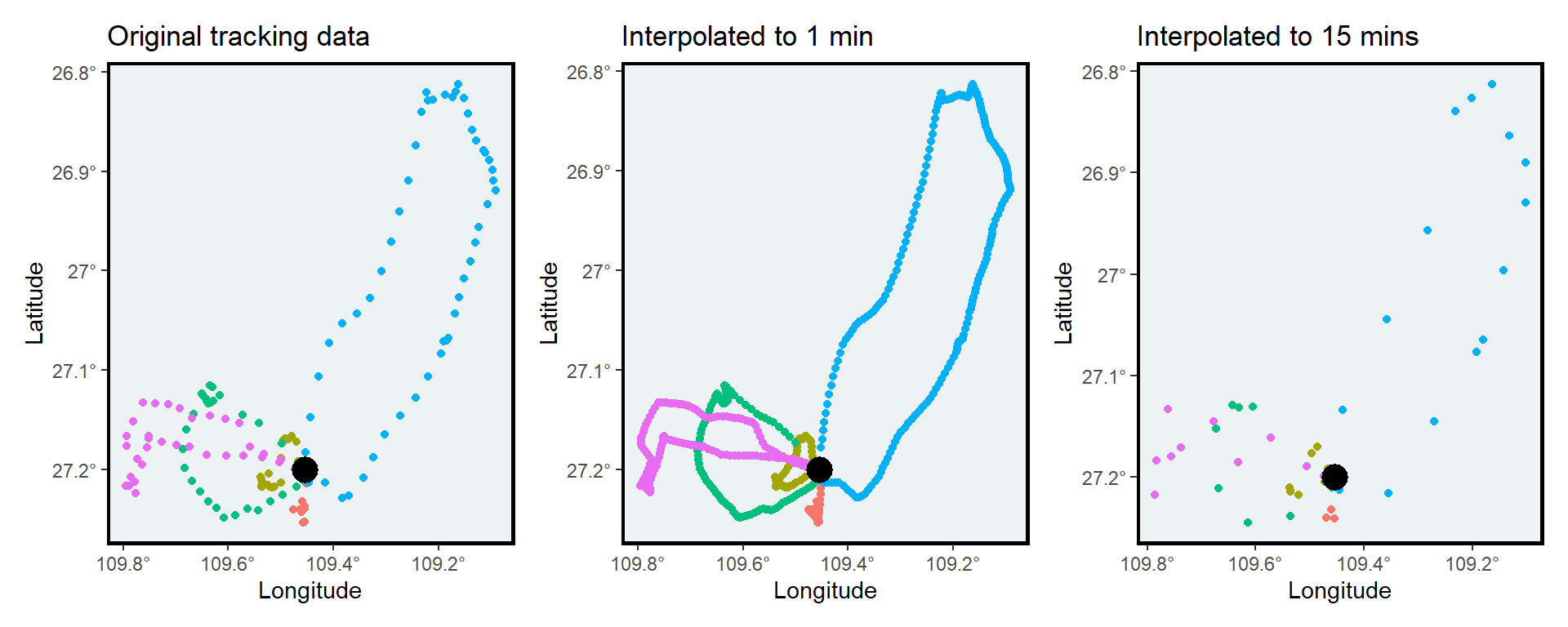

Using the package patchwork we can see the difference side by side.

library(patchwork)

Original_track+Interpolated_1m+Interpolated_15m

Select the interpolation interval that fits better your data.
