Custom legends in a map

Place the legend inside the map and custom the legend title

Miriam Lerma true
2023-08-02

Intro

Customize the legend of your plot.

Plot

Load or install the package seamonas

devtools::install_github("MiriamLL/seamonas")

Load data

The package contains data from a random generated density data frame that can be used for the exercise.

If you want to create this map from scratch visit: create a map with custom points.

density_wmap<-density_wmap

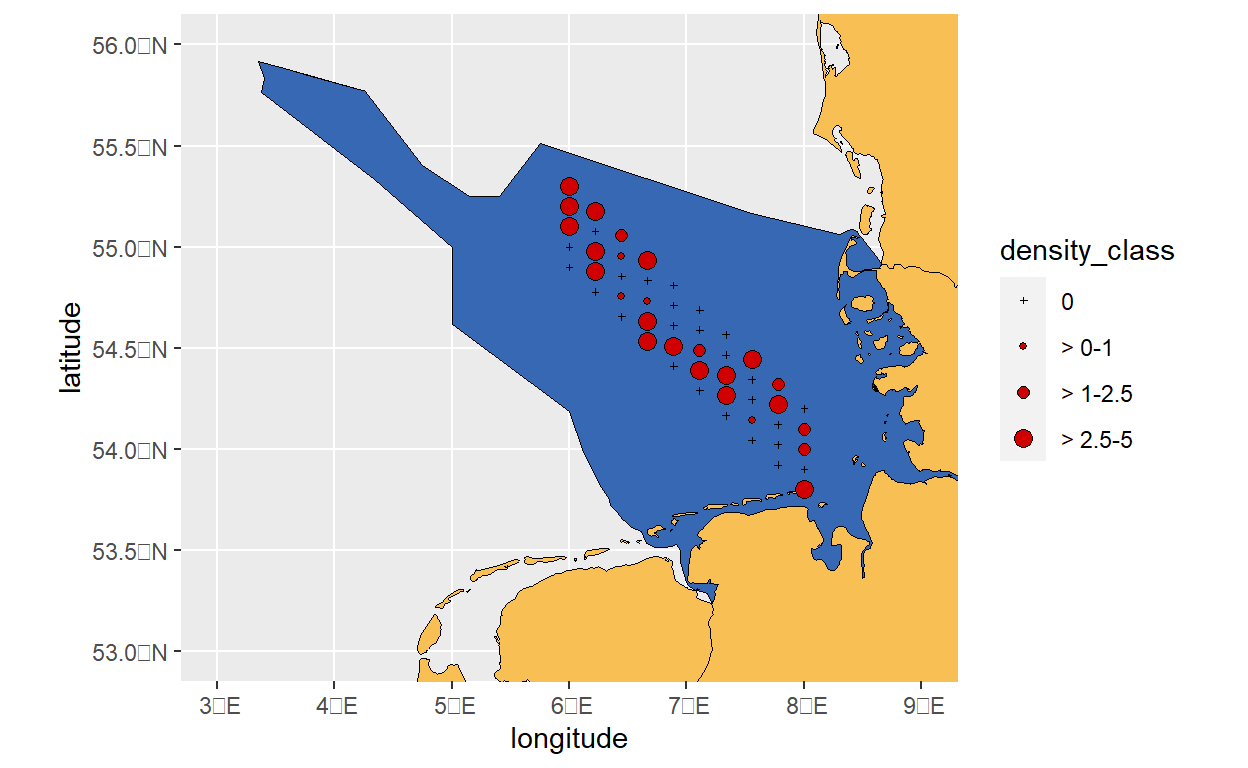

density_wmap

add_legend

I create this function to include the legend inside the plot, the function is available on the package seamonas.

The function removes the background of the legend making it transparent, and includes the legend inside the plot based on the coordinates provided.

add_legend<-function(plot_wbreaks=plot_wbreaks,
                     legxy=legxy){
  plot_wlegend<-plot_wbreaks+
    ggplot2::theme(
      legend.position = legxy,
      legend.title = ggplot2::element_blank(),
      legend.text= ggplot2::element_text(size=10,color="#343a40",family='sans'),
      legend.spacing.y =  ggplot2::unit(0.01, 'cm'),
      legend.spacing.x =  ggplot2::unit(0.2, 'cm'),
      legend.background = ggplot2::element_rect(fill='transparent',colour ="transparent"),
      legend.box.background = ggplot2::element_rect(fill='transparent',colour ="transparent"),
      legend.key = ggplot2::element_rect(fill = "transparent", colour = "transparent"),
      legend.key.size =  ggplot2::unit(0.7, 'cm'))
  return(plot_wlegend)
}

Here, the arguments inside legxy are referring to where the legend will appear.

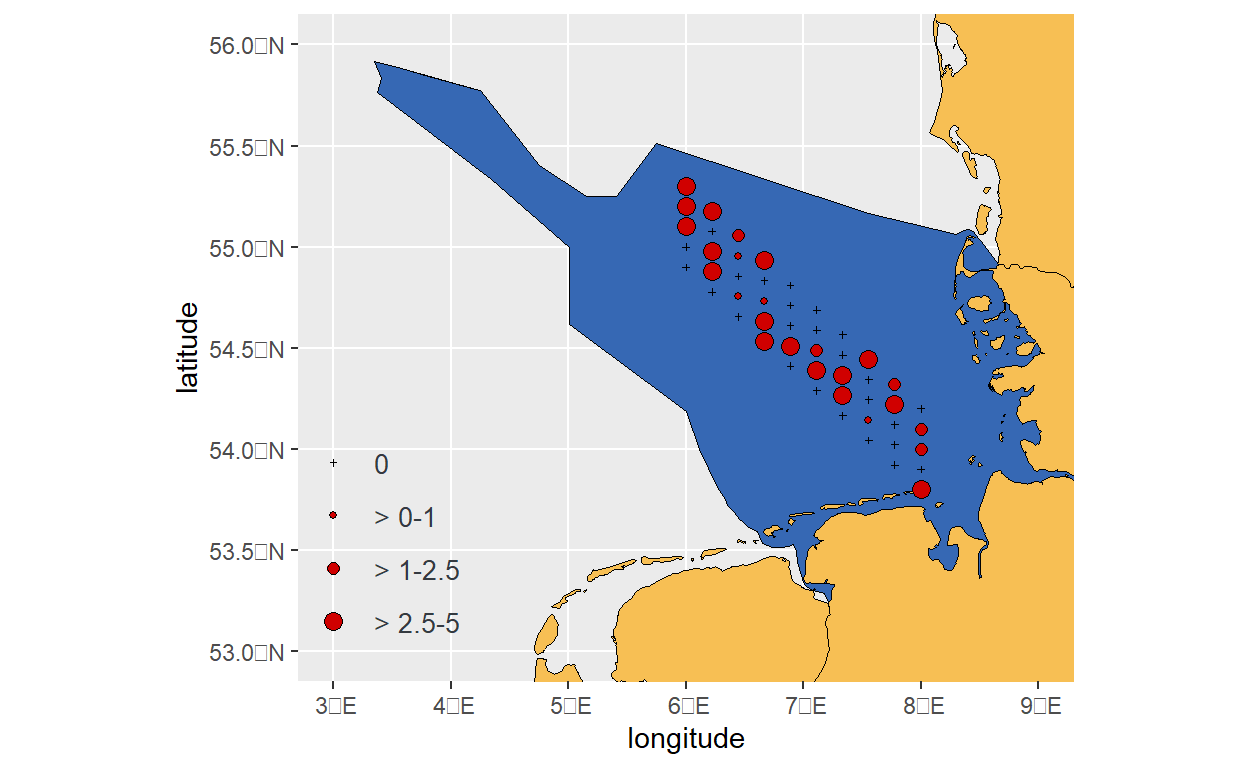

density_wlegend<-add_legend(
  plot_wbreaks=density_wmap,
  legxy=c(0.11, 0.21))
density_wlegend

To add the title of the legend, I used the function annotate and a specific expression since I am using superscript.

density_wlegend<-density_wlegend+
  ggplot2::theme(legend.key.size = ggplot2::unit(0.4, "cm"))+
  ggplot2::annotate(geom="text",
                      x=3.0, y=54.0,
                      label=expression(atop("Density"), paste("[ind/k", m^2,"]")),
                      color="#343a40",hjust = 0)

density_wlegend

add_theme

This function changes the x and y axis legends to Capitalized words and includes the symbol of degree on the plot. Removes the gray background and adds a white line on the panel border. It is also available in the package seamonas, but I am including it here in case you want to customize it.

add_theme<-function(plot_wlegend=plot_wlegend){

  plot_wtheme<-plot_wlegend+
    ggplot2::xlab('Longitude')+
    ggplot2::ylab('Latitude')+
    ggplot2::scale_x_continuous(labels = function(x) paste0(x, '\u00B0', "W")) +
    ggplot2::scale_y_continuous(labels = function(x) paste0(x, '\u00B0', "N"))+
    ggplot2::theme(
      panel.border = ggplot2::element_rect(colour = "black", fill=NA, linewidth = 1),
      panel.grid.major = ggplot2::element_blank(),
      panel.grid.minor = ggplot2::element_blank(),
      panel.background = ggplot2::element_blank())
  return(plot_wtheme)
}

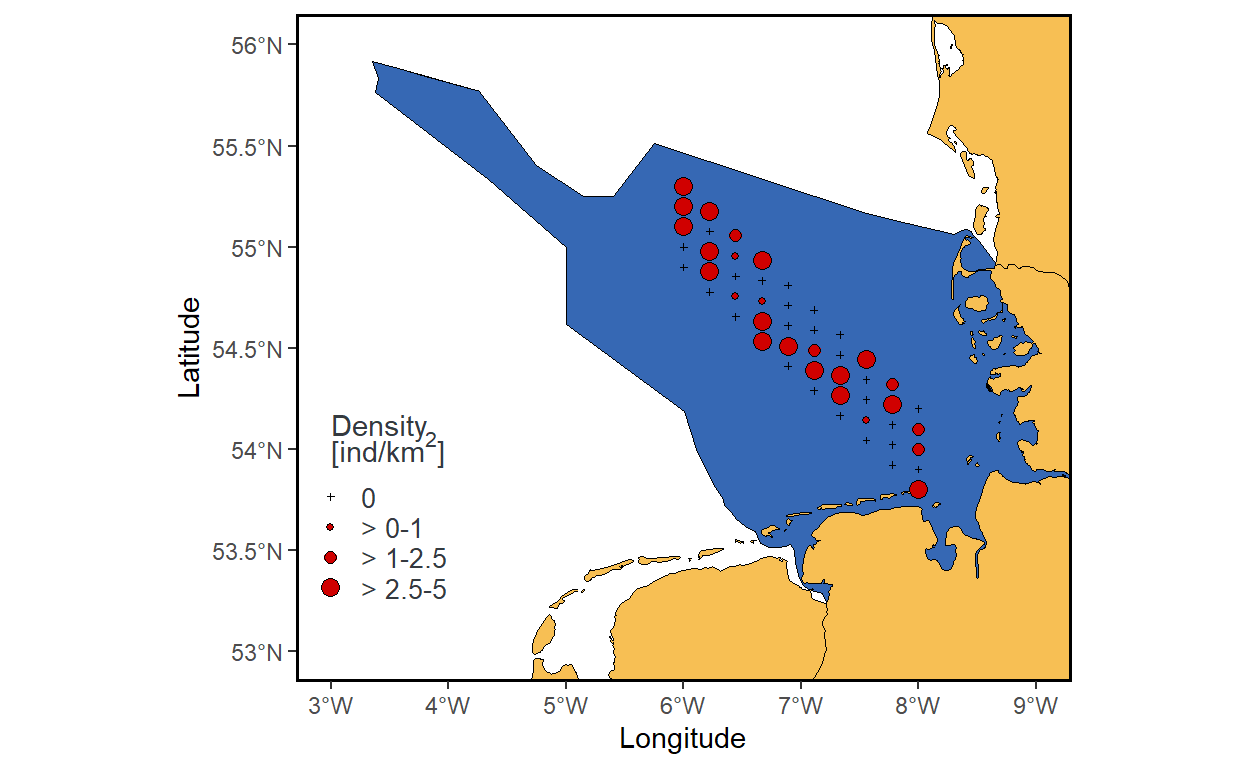

To run the function just add your plot.

density_wtheme<-add_theme(plot_wlegend = density_wlegend)
density_wtheme

You can theoretically use the function add_theme with any other map.
